IRROcloud IC-10
Affordable, battery powered, ten sensor cellular data device and web platform for easy access to real-time data.
More info
900M Monitor
Eight channel data logger installed in the field to continuously record data for analysis of trends.
More info
Handheld Meter
Simple and rugged tool for manually taking readings from any number of WATERMARK sensors.
More info
IRROmesh
Compact, solar-powered, wireless mesh radio system for in-field measurement of soil moisture.
More info

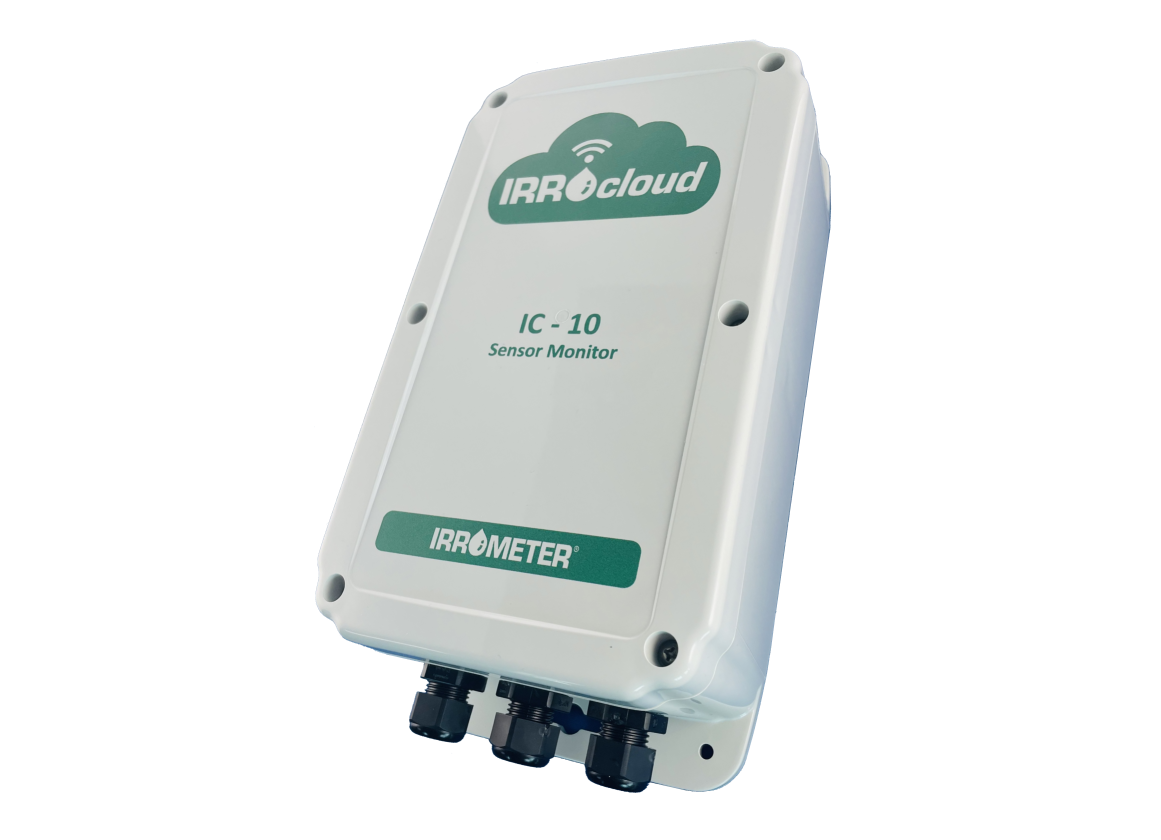

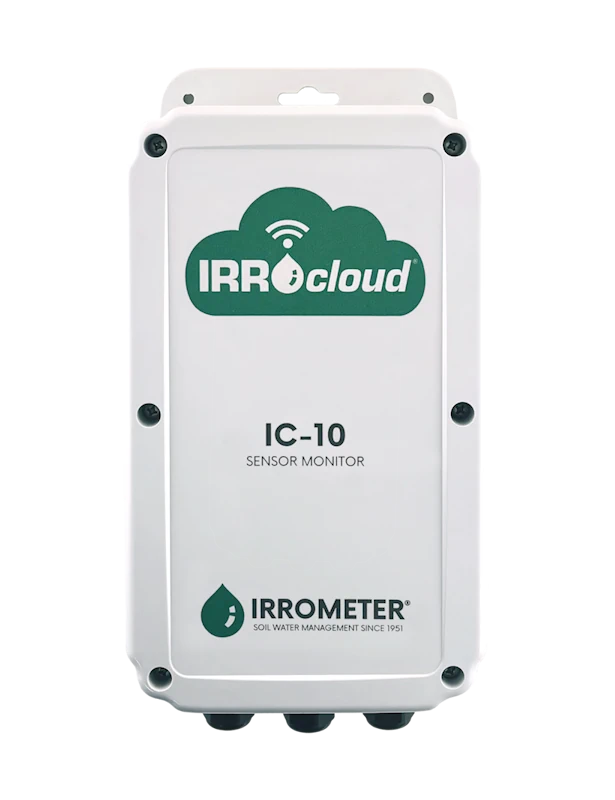

IRROcloud IC-10
Our new IRROcloud system is a simple, affordable, and reliable solution for automatically collecting sensor data and storing it in the cloud for quick access at any time. Using only four C batteries with a 2+ year life, the IC-10 Sensor Monitor reads up to 10 sensors and reports directly to IRROcloud without any need for additional gateways or devices. With no need for a solar panel or height requirement to communicate with other devices, the IC-10 can easily be installed in orchards or beneath center pivots.

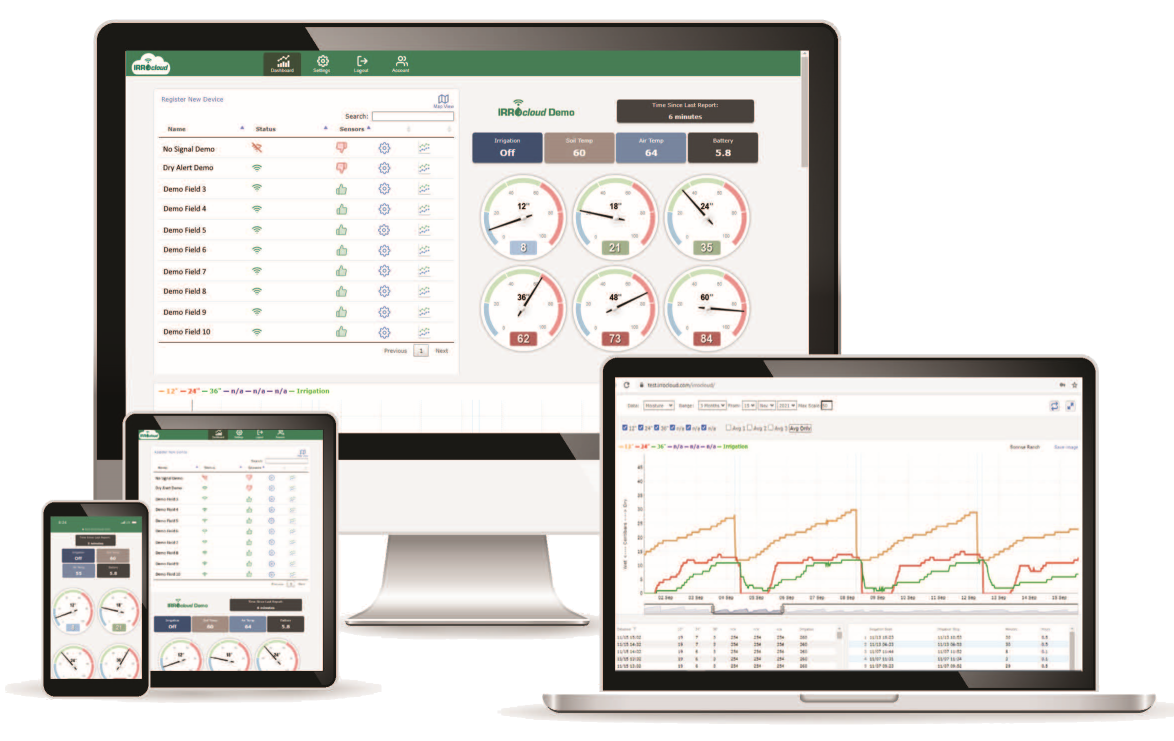

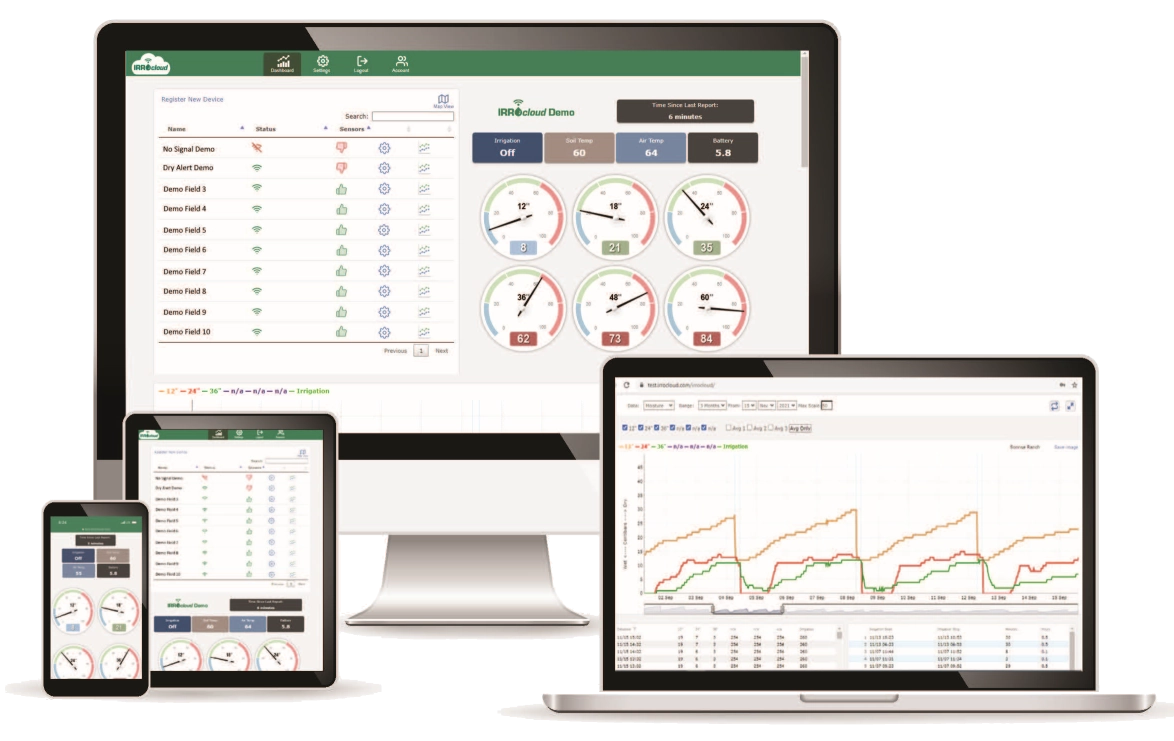

The IRROcloud web platform provides an intuitive interface with a quick reference dashboard, graphing suite, and optional frost alerting.
- LTE-M Cellular Direct to Cloud- no other device needed
- 2+ Years of Battery Life- standard "C" batteries
- Easy Setup - no configuration or calibration
- Install Anywhere - no height or solar requirement
- Frost Alerting - sent via text message
- View or Download data- Sensor data available in real-time from any mobile device or computer. API for data access included.
- Quick View Dashboard- Provides device and sensor status, map, and adjustable threshold gauge panel
- Graphing Suite- For detailed analysis of soil moisture, rainfall, irrigation events, temperatures, and device diagnostic data
- 6 Watermark Sensors - 200SS (or) 6 IRROMETER RSU-V Tensiometers
- 1 Soil Temperature Sensor - 200TS
- 1 Air Temperature Station - ATS
- 1 Adjustable Irrigation Pressure Switch - APS
- 1 Rain Gauge - 900RG
IC-10 Sales Sheet
IRROcloud Login Page

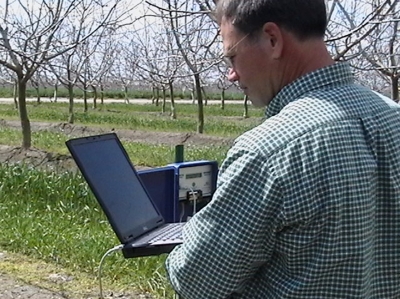

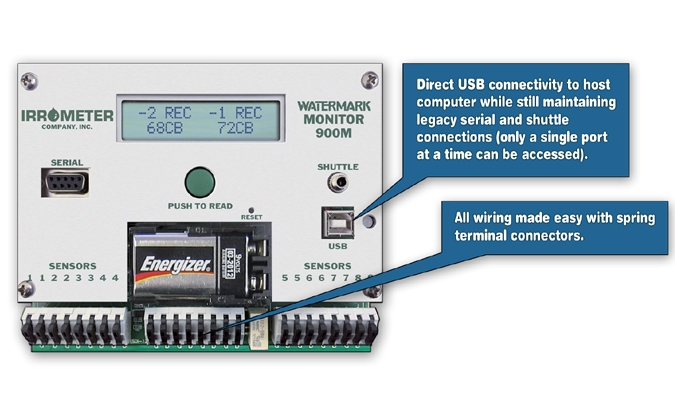

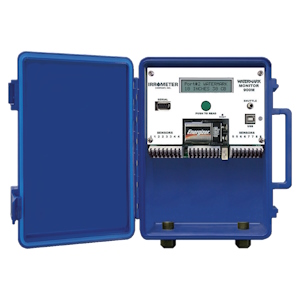

WATERMARK Monitor
The WATERMARK Monitor is our stand-alone data logger, providing users with a reliable, simple, and effective means of collecting information in the field. As well as recording data, the display on the Monitor and can be used to view readings at any time for spot checking conditions.
The Monitor records soil moisture, soil temperature, irrigation on/off status, and rain gauge counts for an accurate record of the performance of your irrigation schedule. Either Watermark 200SS sensors or RSU-V equipped IRROMETER tensiometers can be used to collect soil moisture data.
Information can be downloaded directly to a computer via on-board USB port with the included WaterGraph software, which also includes graphing features for visualization. Downloaded data is stored in a CSV file which can also be accessed by spreadsheet or text editing programs.
Features:
- Automatically reads sensors at a selectable interval
- 8 sensor capacity, can read:
- -WATERMARK Soil Moisture Sensors
- -Temperature Sensors
- -Tipping Bucket Rain Gauges
- -0-5 Voltage output IRROMETER Tensiometers (RSU-V with Adapter)
- -On/Off switch states
- WaterGraph Software included (Windows only)
- In-field display of current and recent readings
- Download history to a computer
- Outdoor mount
- 9 Volt battery included
- Weatherproof enclosure with two strain relief fittings for wiring connections, predrilled mounting hole pattern
- USB Connectivity
900M Specification Document
900M Installation and Operating Instructions
WATERMARK Sensor Datasheet
WaterGraph 3.4 Software for 900M Data Loggers
For further documentation, please click here

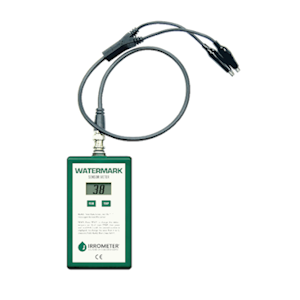

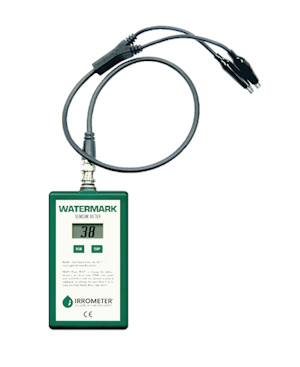

Watermark Handheld Meter
Solid state, hand-held, alternating current resistance bridge meter for reading 200SS WATERMARK sensors. Adjustable for soil temperature variations. Touchpad operating panel with LCD display.
The WATERMARK Meter includes:- Durable case
- 9 volt battery
- Field replaceable cable assembly
- Charts for plotting data
WATERMARK Meter Specification Document
WATERMARK Meter Instruction Manual

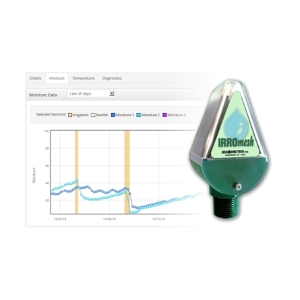

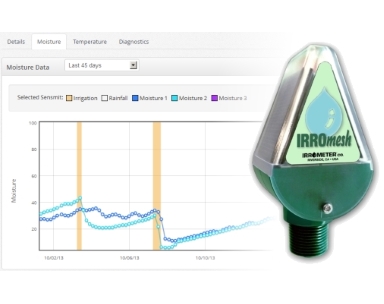

IRROmesh Wireless Mesh System

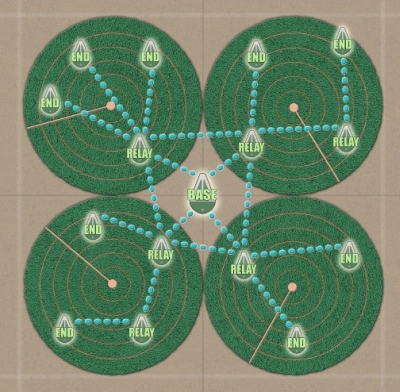

IRROmesh is a compact, solar-powered, wireless system for in-field measurement of soil moisture, temperature, and other parameters. Sensor data from each node is routed through an interactive mesh network back to a central point where it can be uploaded to the web and made accessible to anyone with an Internet enabled PC or smart device, or stored locally for collection. Each node is capable of reading three soil moisture sensors and a soil temperature sensor, along with inputs for recording irrigation events and rain gauge data.
Utilizing the proven and economical WATERMARK soil moisture sensors, IRROmesh allows growers to collect real-time data from sensors all over the farm/vineyard and instantly review it to make informed irrigation scheduling decisions. Each IRROmesh radio node automatically relays messages forward, enabling economical data collection over large areas.
Features:
- No Batteries Required - Simplifies installation and maintenance
- Self-Initializing - Nodes power up and associate themselves
- Self-Routing - Nodes route communication for maximum efficiency
- Self-Healing - Nodes will re-route in case of network obstructions
- Web Based Data - Store and analyze data over the Internet
- Data Logging - Data can be stored in the field and retrieved with a PC
- Small Size - Easy field installation with small footprint

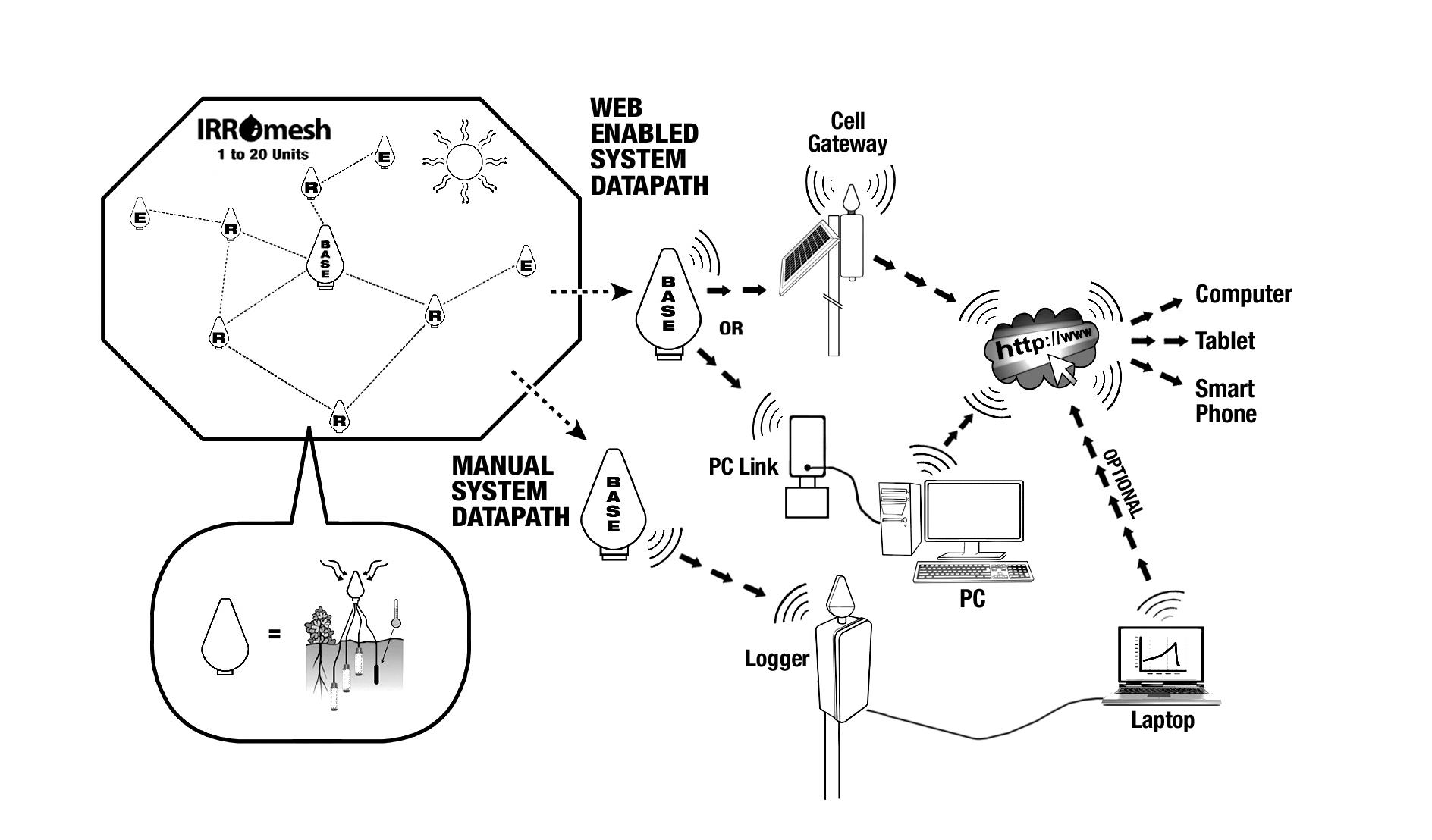

Data Path Options:
- Cellular: Data from the IRROmesh network is immediately fed to a Cellular Gateway (975G) on site and uploaded to the Internet.
- PC Link: Data from the IRROmesh network is immediately fed to a PC Link Node (975P) connected to a PC on-site. Software on the PC uploads to the Internet.
- Manual: Data from the IRROmesh network is stored in a Logger Node (975L) on-site. Data is retrieved with a laptop via USB connection to the Logger Node.
975 IRROmesh Datasheet
WATERMARK Sensor Datasheet
975L Logger Downloader Software
975P PC Link Sensmitpath Software
SensMit Web Login
